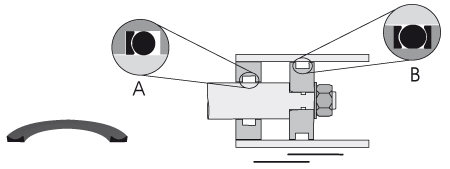

Imagen ilustrativa del perfil. Verificá las medidas en la tabla y el gráfico técnico.

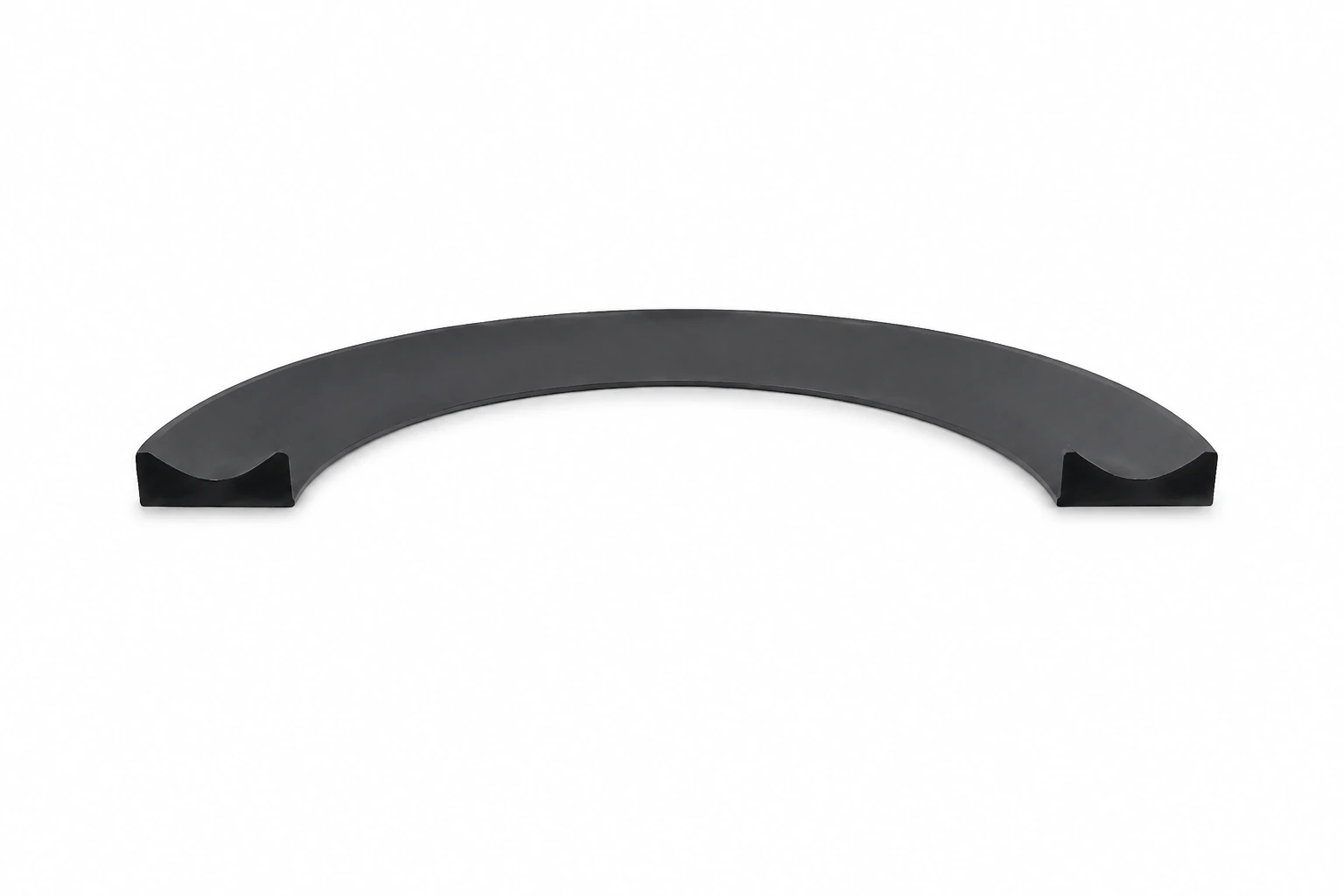

Junta usada en conjunto con el O-RING para evitar el efecto de extrusión. Posee una muesca en su parte superior para que asiente el O-RING. Empleado en sistemas hidráulicos y neumáticos.
Ver mi cotización →369 registros en el catálogo
No hay medidas que coincidan. Consultanos por una medida especial.
| CODIGO | SECCION | D.I. | D.E. | Cotizar |
|---|---|---|---|---|
| AA-001 | 1,02 | 0,74 | 2,78 | |
| AA-002 | 1,27 | 1,07 | 3,61 | |
| AA-003 | 1,52 | 1,42 | 4,46 | |
| AA-004 | 1,78 | 1,78 | 5,34 | |
| AA-005 | 1,78 | 2,57 | 6,13 | |
| AA-006 | 1,78 | 2,90 | 6,46 | |
| AA-007 | 1,78 | 3,68 | 7,24 | |
| AA-008 | 1,78 | 4,47 | 8,03 | |
| AA-009 | 1,78 | 5,28 | 8,84 | |
| AA-010 | 1,78 | 6,07 | 9,63 | |
| AA-011 | 1,78 | 7,65 | 11,21 | |
| AA-012 | 1,78 | 9,25 | 12,81 | |
| AA-013 | 1,78 | 10,82 | 14,38 | |
| AA-014 | 1,78 | 12,42 | 15,98 | |
| AA-015 | 1,78 | 14,00 | 17,56 | |
| AA-016 | 1,78 | 15,60 | 19,16 | |
| AA-017 | 1,78 | 17,17 | 20,73 | |
| AA-018 | 1,78 | 18,77 | 22,33 | |
| AA-019 | 1,78 | 20,35 | 23,91 | |
| AA-020 | 1,78 | 21,95 | 25,51 | |
| AA-021 | 1,78 | 23,52 | 27,08 | |
| AA-022 | 1,78 | 25,12 | 28,68 | |
| AA-023 | 1,78 | 26,70 | 30,26 | |
| AA-024 | 1,78 | 28,30 | 31,86 | |
| AA-025 | 1,78 | 29,87 | 33,43 | |
| AA-026 | 1,78 | 31,47 | 35,03 | |
| AA-027 | 1,78 | 33,05 | 36,61 | |
| AA-028 | 1,78 | 34,65 | 38,21 | |
| AA-029 | 1,78 | 37,82 | 41,38 | |
| AA-030 | 1,78 | 41,00 | 44,56 | |
| AA-031 | 1,78 | 44,17 | 47,73 | |
| AA-032 | 1,78 | 47,35 | 50,91 | |
| AA-033 | 1,78 | 50,52 | 54,08 | |
| AA-034 | 1,78 | 53,70 | 57,26 | |
| AA-035 | 1,78 | 56,87 | 60,43 | |
| AA-036 | 1,78 | 60,05 | 63,61 | |
| AA-037 | 1,78 | 63,22 | 66,78 | |
| AA-038 | 1,78 | 66,40 | 69,96 | |
| AA-039 | 1,78 | 69,57 | 73,13 | |
| AA-040 | 1,78 | 72,75 | 76,31 | |
| AA-041 | 1,78 | 75,92 | 79,48 | |
| AA-042 | 1,78 | 82,27 | 85,83 | |
| AA-043 | 1,78 | 88,62 | 92,18 | |
| AA-044 | 1,78 | 94,97 | 98,53 | |
| AA-045 | 1,78 | 101,32 | 104,88 | |
| AA-046 | 1,78 | 107,67 | 111,23 | |
| AA-047 | 1,78 | 114,02 | 117,58 | |
| AA-048 | 1,78 | 120,37 | 123,93 | |
| AA-049 | 1,78 | 126,72 | 130,28 | |
| AA-050 | 1,78 | 133,07 | 136,63 | |
| AA-102 | 2,62 | 1,24 | 6,48 | |
| AA-103 | 2,62 | 2,06 | 7,30 | |
| AA-104 | 2,62 | 2,84 | 8,08 | |
| AA-105 | 2,62 | 3,63 | 8,87 | |
| AA-106 | 2,62 | 4,42 | 9,66 | |
| AA-107 | 2,62 | 5,23 | 10,47 | |
| AA-108 | 2,62 | 6,02 | 11,26 | |
| AA-109 | 2,62 | 7,59 | 12,83 | |
| AA-110 | 2,62 | 9,19 | 14,43 | |
| AA-111 | 2,62 | 10,77 | 16,01 | |
| AA-112 | 2,62 | 12,37 | 17,61 | |
| AA-113 | 2,62 | 13,94 | 19,18 | |
| AA-114 | 2,62 | 15,54 | 20,78 | |
| AA-115 | 2,62 | 17,12 | 22,36 | |
| AA-116 | 2,62 | 18,72 | 23,96 | |
| AA-117 | 2,62 | 20,30 | 25,54 | |
| AA-118 | 2,62 | 21,89 | 27,13 | |
| AA-119 | 2,62 | 23,47 | 28,71 | |
| AA-120 | 2,52 | 25,27 | 30,31 | |
| AA-121 | 2,62 | 26,64 | 31,88 | |
| AA-122 | 2,62 | 28,24 | 33,48 | |
| AA-123 | 2,62 | 29,82 | 35,06 | |
| AA-124 | 2,62 | 31,42 | 36,66 | |
| AA-125 | 2,62 | 32,99 | 38,23 | |
| AA-126 | 2,62 | 34,59 | 39,83 | |
| AA-127 | 2,62 | 36,17 | 41,41 | |
| AA-128 | 2,62 | 37,77 | 43,01 | |
| AA-129 | 2,62 | 39,34 | 44,58 | |
| AA-130 | 2,62 | 40,94 | 46,18 | |
| AA-131 | 2,62 | 42,52 | 47,76 | |
| AA-132 | 2,62 | 44,12 | 49,36 | |
| AA-133 | 2,62 | 45,69 | 50,93 | |
| AA-134 | 2,62 | 47,29 | 52,53 | |
| AA-135 | 2,62 | 48,90 | 54,14 | |
| AA-136 | 2,62 | 50,47 | 55,71 | |
| AA-137 | 2,62 | 52,07 | 57,31 | |
| AA-138 | 2,62 | 53,64 | 58,88 | |
| AA-139 | 2,62 | 55,25 | 60,49 | |
| AA-140 | 2,62 | 56,82 | 62,06 | |
| AA-141 | 2,62 | 58,42 | 63,66 | |
| AA-142 | 2,62 | 59,99 | 65,23 | |
| AA-143 | 2,62 | 61,60 | 66,84 | |
| AA-144 | 2,62 | 63,17 | 68,41 | |
| AA-145 | 2,62 | 64,77 | 70,01 | |
| AA-146 | 2,62 | 66,34 | 71,58 | |
| AA-147 | 2,62 | 67,95 | 73,19 | |
| AA-148 | 2,62 | 69,52 | 74,76 | |
| AA-149 | 2,62 | 71,12 | 76,36 | |
| AA-150 | 2,62 | 72,69 | 77,93 | |
| AA-151 | 2,62 | 75,87 | 81,11 | |
| AA-152 | 2,62 | 82,22 | 87,46 | |
| AA-153 | 2,62 | 88,57 | 93,81 | |
| AA-154 | 2,62 | 94,92 | 100,16 | |
| AA-155 | 2,62 | 101,27 | 106,51 | |
| AA-156 | 2,62 | 107,62 | 112,86 | |
| AA-157 | 2,62 | 113,97 | 119,21 | |
| AA-158 | 2,62 | 120,32 | 125,56 | |
| AA-159 | 2,62 | 126,67 | 131,91 | |
| AA-160 | 2,62 | 133,02 | 138,26 | |
| AA-161 | 2,62 | 139,37 | 144,61 | |
| AA-162 | 2,62 | 145,72 | 150,96 | |
| AA-163 | 2,62 | 152,07 | 157,31 | |
| AA-164 | 2,62 | 158,42 | 163,66 | |
| AA-165 | 2,62 | 164,77 | 170,01 | |
| AA-166 | 2,62 | 171,12 | 176,36 | |
| AA-167 | 2,62 | 177,47 | 182,71 | |
| AA-168 | 2,62 | 183,82 | 189,06 | |
| AA-169 | 2,62 | 190,17 | 195,41 | |
| AA-170 | 2,62 | 196,52 | 201,76 | |
| AA-171 | 2,62 | 202,87 | 208,11 | |
| AA-172 | 2,62 | 209,22 | 214,46 | |
| AA-173 | 2,62 | 215,57 | 220,81 | |
| AA-174 | 2,62 | 221,92 | 227,16 | |
| AA-175 | 2,62 | 228,27 | 233,51 | |
| AA-176 | 2,62 | 234,62 | 239,86 | |
| AA-177 | 2,62 | 240,97 | 246,21 | |
| AA-178 | 2,62 | 247,32 | 252,56 | |
| AA-201 | 3,53 | 4,34 | 11,40 | |
| AA-202 | 3,53 | 5,94 | 13,00 | |
| AA-203 | 3,53 | 7,52 | 14,58 | |
| AA-204 | 3,53 | 9,12 | 16,18 | |
| AA-205 | 3,53 | 10,69 | 17,75 | |
| AA-206 | 3,53 | 12,29 | 19,35 | |
| AA-207 | 3,53 | 13,87 | 20,93 | |
| AA-208 | 3,53 | 15,47 | 22,53 | |
| AA-209 | 3,53 | 17,04 | 24,10 | |
| AA-210 | 3,53 | 18,64 | 25,70 | |
| AA-211 | 3,53 | 20,22 | 27,28 | |
| AA-212 | 3,53 | 21,82 | 28,88 | |
| AA-213 | 3,53 | 23,39 | 30,45 | |
| AA-214 | 3,53 | 24,99 | 32,05 | |
| AA-215 | 3,53 | 26,57 | 33,63 | |
| AA-216 | 3,53 | 28,17 | 35,23 | |
| AA-217 | 3,53 | 29,74 | 36,80 | |
| AA-218 | 3,53 | 31,34 | 38,40 | |
| AA-219 | 3,53 | 32,92 | 39,98 | |
| AA-220 | 3,53 | 34,52 | 41,58 | |
| AA-221 | 3,53 | 36,09 | 43,15 | |
| AA-222 | 3,53 | 37,69 | 44,75 | |
| AA-223 | 3,53 | 40,87 | 47,93 | |
| AA-224 | 3,53 | 44,04 | 51,10 | |
| AA-225 | 3,53 | 47,22 | 54,28 | |
| AA-226 | 3,53 | 50,39 | 57,45 | |
| AA-227 | 3,53 | 53,57 | 60,63 | |
| AA-228 | 3,53 | 56,74 | 63,80 | |
| AA-229 | 3,53 | 59,92 | 66,98 | |
| AA-230 | 3,53 | 63,09 | 70,15 | |
| AA-231 | 3,53 | 66,27 | 73,33 | |
| AA-232 | 3,53 | 69,44 | 76,50 | |
| AA-233 | 3,53 | 72,62 | 79,68 | |
| AA-234 | 3,53 | 75,79 | 82,85 | |
| AA-235 | 3,53 | 78,97 | 86,03 | |
| AA-236 | 3,53 | 82,14 | 89,20 | |
| AA-237 | 3,53 | 85,32 | 92,38 | |
| AA-238 | 3,53 | 88,49 | 95,55 | |
| AA-239 | 3,53 | 91,67 | 98,73 | |
| AA-240 | 3,53 | 94,84 | 101,90 | |
| AA-241 | 3,53 | 98,02 | 105,08 | |
| AA-242 | 3,53 | 101,19 | 108,25 | |
| AA-243 | 3,53 | 104,37 | 111,43 | |
| AA-244 | 3,53 | 107,54 | 114,60 | |
| AA-245 | 3,53 | 110,72 | 117,78 | |
| AA-246 | 3,53 | 113,89 | 120,95 | |
| AA-247 | 3,53 | 117,07 | 124,13 | |
| AA-248 | 3,53 | 120,24 | 127,30 | |
| AA-249 | 3,53 | 123,42 | 130,48 | |
| AA-250 | 3,53 | 126,59 | 133,65 | |
| AA-251 | 3,53 | 129,77 | 136,83 | |
| AA-252 | 3,53 | 132,94 | 140,00 | |
| AA-253 | 3,53 | 136,12 | 143,18 | |
| AA-254 | 3,53 | 139,29 | 146,35 | |
| AA-255 | 3,53 | 142,47 | 149,53 | |
| AA-256 | 3,53 | 145,64 | 152,70 | |
| AA-257 | 3,53 | 148,82 | 155,88 | |
| AA-258 | 3,53 | 151,99 | 159,05 | |
| AA-259 | 3,53 | 158,34 | 165,40 | |
| AA-260 | 3,53 | 164,69 | 171,75 | |
| AA-261 | 3,53 | 171,04 | 178,10 | |
| AA-262 | 3,53 | 177,39 | 184,45 | |
| AA-263 | 3,53 | 183,74 | 190,80 | |
| AA-264 | 3,53 | 190,09 | 197,15 | |
| AA-265 | 3,53 | 196,44 | 203,50 | |
| AA-266 | 3,53 | 202,79 | 209,85 | |
| AA-267 | 3,53 | 209,14 | 216,20 | |
| AA-268 | 3,53 | 215,49 | 222,55 | |
| AA-269 | 3,53 | 221,84 | 228,90 | |
| AA-270 | 3,53 | 228,19 | 235,25 | |
| AA-271 | 3,53 | 234,54 | 241,60 | |
| AA-272 | 3,53 | 240,89 | 247,95 | |
| AA-273 | 3,53 | 247,24 | 254,30 | |
| AA-274 | 3,53 | 253,59 | 260,65 | |
| AA-275 | 3,53 | 266,29 | 273,35 | |
| AA-276 | 3,53 | 278,99 | 286,05 | |
| AA-277 | 3,53 | 291,69 | 298,75 | |
| AA-278 | 3,53 | 304,39 | 311,45 | |
| AA-279 | 3,53 | 329,79 | 336,85 | |
| AA-280 | 3,53 | 355,19 | 362,25 | |
| AA-281 | 3,53 | 380,59 | 387,65 | |
| AA-282 | 3,53 | 405,26 | 412,32 | |
| AA-283 | 3,53 | 430,66 | 437,72 | |
| AA-284 | 3,53 | 456,06 | 463,12 | |
| AA-309 | 5,33 | 10,46 | 21,12 | |
| AA-310 | 5,33 | 12,07 | 22,73 | |
| AA-311 | 5,33 | 13,64 | 24,30 | |
| AA-312 | 5,33 | 15,24 | 25,90 | |
| AA-313 | 5,33 | 16,81 | 27,47 | |
| AA-314 | 5,33 | 18,42 | 29,08 | |
| AA-315 | 5,33 | 19,99 | 30,65 | |
| AA-316 | 5,33 | 21,59 | 32,25 | |
| AA-317 | 5,33 | 23,16 | 33,82 | |
| AA-318 | 5,33 | 24,77 | 35,43 | |
| AA-319 | 5,33 | 26,34 | 37,00 | |
| AA-320 | 5,33 | 27,94 | 38,60 | |
| AA-321 | 5,33 | 29,51 | 40,17 | |
| AA-322 | 5,33 | 31,12 | 41,78 | |
| AA-323 | 5,33 | 32,69 | 43,35 | |
| AA-324 | 5,33 | 34,29 | 44,95 | |
| AA-325 | 5,33 | 37,47 | 48,13 | |
| AA-326 | 5,33 | 40,64 | 51,30 | |
| AA-327 | 5,33 | 43,82 | 54,48 | |
| AA-328 | 5,33 | 46,99 | 57,65 | |
| AA-329 | 5,33 | 50,17 | 60,83 | |
| AA-330 | 5,33 | 53,34 | 64,00 | |
| AA-331 | 5,33 | 56,52 | 67,18 | |
| AA-332 | 5,33 | 59,69 | 70,35 | |
| AA-333 | 5,33 | 62,87 | 73,53 | |
| AA-334 | 5,33 | 66,04 | 76,70 | |
| AA-335 | 5,33 | 69,22 | 79,88 | |
| AA-336 | 5,33 | 72,39 | 83,05 | |
| AA-337 | 5,33 | 75,57 | 86,23 | |
| AA-338 | 5,33 | 78,74 | 89,40 | |
| AA-339 | 5,33 | 81,92 | 92,58 | |
| AA-340 | 5,33 | 85,09 | 95,75 | |
| AA-341 | 5,33 | 88,27 | 98,93 | |
| AA-342 | 5,33 | 91,44 | 102,10 | |
| AA-343 | 5,33 | 94,62 | 105,28 | |
| AA-344 | 5,33 | 97,79 | 108,45 | |
| AA-345 | 5,33 | 100,97 | 111,63 | |
| AA-346 | 5,33 | 104,14 | 114,80 | |
| AA-347 | 5,33 | 107,32 | 117,98 | |
| AA-348 | 5,33 | 110,49 | 121,15 | |
| AA-349 | 5,33 | 113,67 | 124,33 | |
| AA-350 | 5,33 | 116,84 | 127,50 | |
| AA-351 | 5,33 | 120,02 | 130,68 | |
| AA-352 | 5,33 | 123,19 | 133,85 | |
| AA-353 | 5,33 | 126,37 | 137,03 | |
| AA-354 | 5,33 | 129,54 | 140,20 | |
| AA-355 | 5,33 | 132,72 | 143,38 | |
| AA-356 | 5,33 | 135,89 | 146,55 | |
| AA-357 | 5,33 | 139,07 | 149,73 | |
| AA-358 | 5,33 | 142,24 | 152,90 | |
| AA-359 | 5,33 | 145,42 | 156,08 | |
| AA-360 | 5,33 | 148,59 | 159,25 | |
| AA-361 | 5,33 | 151,77 | 162,43 | |
| AA-362 | 5,33 | 158,12 | 168,78 | |
| AA-363 | 5,33 | 164,47 | 175,13 | |
| AA-364 | 5,33 | 170,82 | 181,48 | |
| AA-365 | 5,33 | 177,17 | 187,83 | |
| AA-366 | 5,33 | 183,52 | 194,18 | |
| AA-367 | 5,33 | 189,87 | 200,53 | |
| AA-368 | 5,33 | 196,22 | 206,88 | |
| AA-369 | 5,33 | 202,57 | 213,23 | |
| AA-370 | 5,33 | 208,92 | 219,58 | |
| AA-371 | 5,33 | 215,27 | 225,93 | |
| AA-372 | 5,33 | 221,62 | 232,28 | |
| AA-373 | 5,33 | 227,97 | 238,63 | |
| AA-374 | 5,33 | 234,32 | 244,98 | |
| AA-375 | 5,33 | 240,67 | 251,33 | |
| AA-376 | 5,33 | 247,02 | 257,68 | |
| AA-377 | 5,33 | 253,37 | 264,03 | |
| AA-378 | 5,33 | 266,07 | 276,73 | |
| AA-379 | 5,33 | 278,77 | 289,43 | |
| AA-380 | 5,33 | 291,47 | 302,13 | |
| AA-381 | 5,33 | 304,17 | 314,83 | |
| AA-382 | 5,33 | 329,57 | 340,23 | |
| AA-383 | 5,33 | 354,97 | 365,63 | |
| AA-384 | 5,33 | 380,37 | 391,03 | |
| AA-385 | 5,33 | 405,26 | 415,92 | |
| AA-386 | 5,33 | 430,66 | 441,32 | |
| AA-387 | 5,33 | 456,06 | 466,72 | |
| AA-388 | 5,33 | 481,41 | 492,07 | |
| AA-389 | 5,33 | 506,81 | 517,47 | |
| AA-390 | 5,33 | 532,21 | 542,87 | |
| AA-391 | 5,33 | 557,61 | 568,27 | |
| AA-392 | 5,33 | 582,68 | 593,34 | |
| AA-393 | 5,33 | 608,08 | 618,74 | |
| AA-394 | 5,33 | 633,48 | 644,14 | |
| AA-395 | 5,33 | 658,88 | 669,54 | |
| AA-425 | 6,99 | 113,67 | 127,65 | |
| AA-426 | 6,99 | 116,84 | 130,82 | |
| AA-427 | 6,99 | 120,02 | 134,00 | |
| AA-428 | 6,99 | 123,19 | 137,17 | |
| AA-429 | 6,99 | 126,37 | 140,35 | |
| AA-430 | 6,99 | 129,54 | 143,52 | |
| AA-431 | 6,99 | 132,72 | 146,70 | |
| AA-432 | 6,99 | 135,89 | 149,87 | |
| AA-433 | 6,99 | 139,07 | 153,05 | |
| AA-434 | 6,99 | 142,24 | 156,22 | |
| AA-435 | 6,99 | 145,42 | 159,40 | |
| AA-436 | 6,99 | 148,59 | 162,57 | |
| AA-437 | 6,99 | 151,77 | 165,57 | |
| AA-438 | 6,99 | 158,12 | 172,10 | |
| AA-439 | 6,99 | 164,47 | 178,45 | |
| AA-440 | 6,99 | 170,82 | 184,80 | |
| AA-441 | 6,99 | 177,17 | 191,15 | |
| AA-442 | 6,99 | 183,52 | 197,50 | |
| AA-443 | 6,99 | 189,87 | 203,85 | |
| AA-444 | 6,99 | 196,22 | 210,20 | |
| AA-445 | 6,99 | 202,57 | 216,55 | |
| AA-446 | 6,99 | 215,27 | 229,25 | |
| AA-447 | 6,99 | 227,97 | 241,95 | |
| AA-448 | 6,99 | 240,67 | 254,65 | |
| AA-449 | 6,99 | 253,37 | 267,35 | |
| AA-450 | 6,99 | 266,07 | 280,05 | |
| AA-451 | 6,99 | 278,77 | 292,75 | |
| AA-452 | 6,99 | 291,47 | 305,45 | |
| AA-453 | 6,99 | 304,17 | 318,15 | |
| AA-454 | 6,99 | 316,87 | 330,85 | |
| AA-455 | 6,99 | 329,57 | 343,55 | |
| AA-456 | 6,99 | 342,27 | 356,25 | |
| AA-457 | 6,99 | 354,97 | 368,95 | |
| AA-458 | 6,99 | 367,67 | 381,65 | |
| AA-459 | 6,99 | 380,37 | 394,35 | |
| AA-460 | 6,99 | 393,07 | 407,05 | |
| AA-461 | 6,99 | 405,26 | 419,24 | |
| AA-462 | 6,99 | 417,96 | 431,94 | |
| AA-463 | 6,99 | 430,66 | 444,64 | |
| AA-464 | 6,99 | 443,36 | 457,34 | |
| AA-465 | 6,99 | 456,06 | 470,04 | |
| AA-466 | 6,99 | 468,76 | 482,74 | |
| AA-467 | 6,99 | 481,46 | 495,44 | |
| AA-468 | 6,99 | 494,16 | 508,14 | |
| AA-469 | 6,99 | 506,86 | 520,84 | |
| AA-470 | 6,99 | 532,26 | 546,24 | |
| AA-471 | 6,99 | 557,66 | 571,64 | |
| AA-472 | 6,99 | 582,68 | 596,66 | |
| AA-473 | 6,99 | 608,08 | 622,06 | |
| AA-474 | 6,99 | 633,48 | 647,46 | |
| AA-475 | 6,99 | 658,88 | 672,86 | |
| AA-901 | 1,42 | 4,70 | 7,54 | |
| AA-902 | 1,63 | 6,07 | 9,33 | |
| AA-903 | 1,63 | 7,65 | 10,91 | |
| AA-904 | 1,83 | 8,92 | 12,58 | |
| AA-905 | 1,83 | 10,52 | 14,18 | |
| AA-906 | 1,98 | 11,89 | 15,85 | |
| AA-907 | 2,08 | 13,46 | 17,62 | |
| AA-908 | 2,21 | 16,36 | 20,78 | |
| AA-909 | 2,46 | 17,93 | 22,85 | |
| AA-910 | 2,46 | 19,18 | 24,10 | |
| AA-911 | 2,95 | 21,92 | 27,82 | |
| AA-912 | 2,95 | 23,47 | 29,37 | |
| AA-913 | 2,95 | 25,04 | 30,94 | |
| AA-914 | 2,95 | 26,59 | 32,49 | |
| AA-916 | 2,95 | 29,74 | 35,64 | |
| AA-918 | 2,95 | 34,42 | 40,32 | |
| AA-920 | 3,00 | 37,47 | 43,47 | |
| AA-924 | 3,00 | 43,69 | 49,69 | |
| AA-928 | 3,00 | 53,09 | 59,09 | |
| AA-932 | 3,00 | 59,36 | 65,36 |

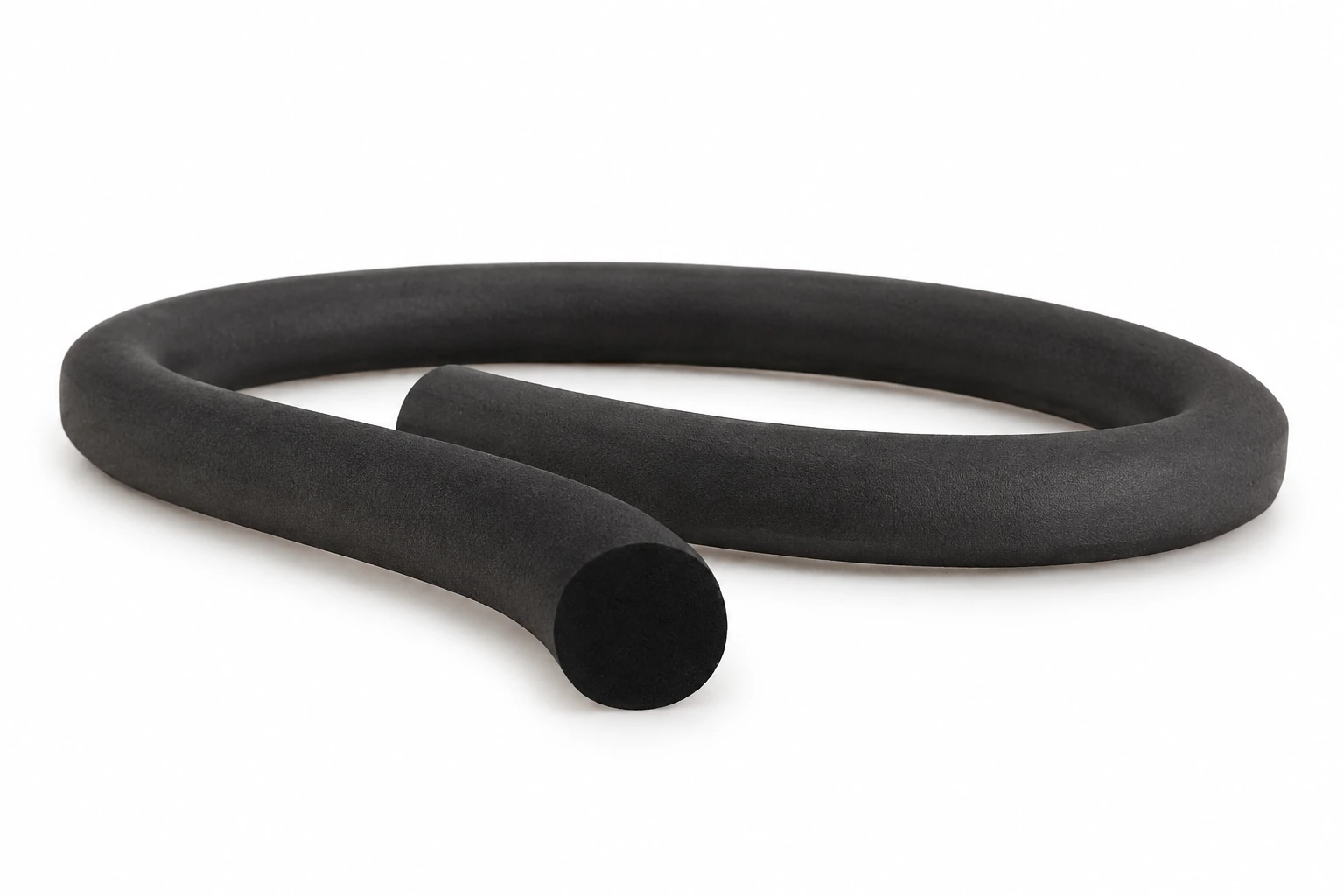

Empleado como sello de uso estático. Reemplaza el O-RING cuando se necesita grandes diámetros. Consulte stock y plazo de entrega.
Ver ficha y medidas →

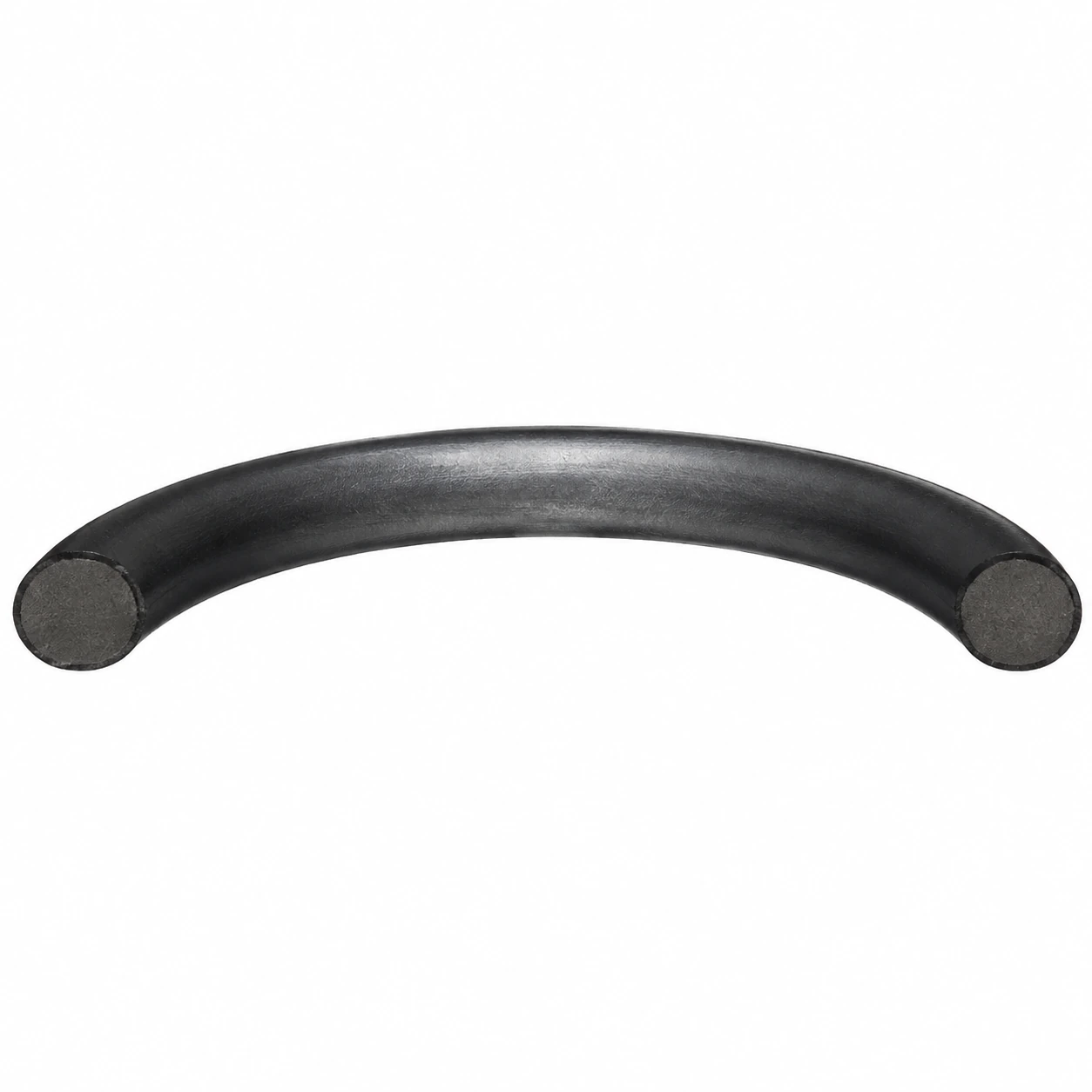

Junta torica empleada en sistemas hidráulicos, neumáticos y usos diversos y generales. Empleado en sistemas hidráulicos y neumáticos.…
Ver ficha y medidas →Junta torica empleada en sistemas hidráulicos, neumáticos y usos diversos y generales. Utilizado como sello estático, dinámico y…
Ver ficha y medidas →
